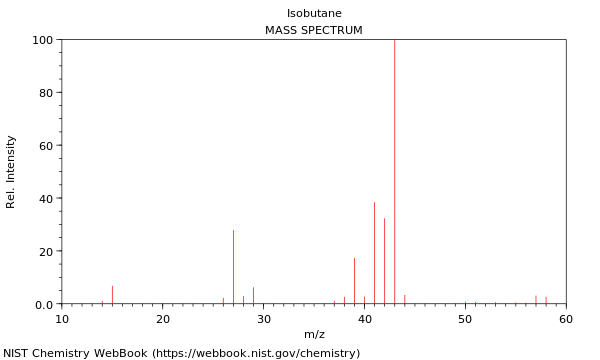

Here is the mass spectrum of isobutane:

http://webbook.nist.gov/cgi/cbook.cgi?Spec=C75285&Index=0&Type=Mass

Clearly the peak at $\mathrm{m/z} = 27$ corresponds to the species $\ce{C2H3+}$, the "protonated acetylene".

I am interested in possible formations for its formation from the molecular ion $\ce{t-BuH+}$.

$\endgroup$
  • $\begingroup$ Electron ionization fragmentation spectra, unlike say CID spectra, can be reasonably predicted computationally for small molecules. This capability is only a few years old and is a major testament to how computational chemistry has advanced in the last few years. Here's a recent review. pubs.acs.org/doi/full/10.1021/acs.jpca.6b02907 $\endgroup$ – Curt F. Jan 16 '17 at 5:38
1
$\begingroup$

Some of the first mass spectrometrists to see this ion were Stevenson and Hipple in 1942.1 They were puzzled by it.

Fifteen years later, Rosenstock and Melton explained the source of this ion in an exhaustive study.2 First, the molecular ion $\ce{C4H10+}$ dissociates into fragments via five possible pathways, each with its own activation energy. See Table VIII in their paper, which I reproduce below.

Table VIII from Rosenstock and Melton, 1957

None of these primary dissociation pathways gives rise to $\ce{C2H3+}$. Instead, it arises from a variety of processes from a subset (the metastable subset) of these five primary transitions. These processes are shown in Tables X and XI of their paper.

Tables X and XI from Rosenstock and Melton, 1957

All of the reactions that give rise to $\ce{C2H3+}$ are probably happening to some extent, but the lowest-energy route there for isobutane (right column) appears to be via $\ce{C2H5+ -> C2H3+ + H2}$ (only 1.9 eV). However, $\ce{C2H5+}$ itself requires more energy to form than $\ce{C3H7+}$ ($m/z=43$), so the route $\ce{C3H7+ -> C2H3+ + CH4}$ may also occur as well.

The general conclusions of their paper are worth quoting:

The basic concept of the quasi-equilibrium theory is that mass spectra are formed by a series of competing consecutive unimolecular decomposition of excited ions. The results discussed above lend strong support to this concept. It was found that of several possible reactions of a given ion, the metastable transition was associated with the reaction having the least activation energy. The general rate equation appropriate for these systems is the product of a frequency factor and a function of the excitation energy $E$ and activation energy $\epsilon$. When the value of $E$ is such that the rate constant is of the order of $10^6~\mathrm{sec^{-1}}$, the rate constant is extremely sensitive to the value of $\epsilon$. The result is that a second reaction having an $\epsilon$ higher by more than a few tenths of an eV will have a considerably smaller rate constant, even if the frequency factor is larger by a factor of a thousand. Thus, in general, the correlation can be carried out in terms of activation energies alone.

References

  1. D. P. Stevenson, J. A. Hipple, Jr., J. Am. Chem. Soc. 1942, 64 (7), 1588–1594.
  2. H. M. Rosenstock, C. E. Melton, J. Chem. Phys. 1957, 26 (2), 314-322.
$\endgroup$
  • $\begingroup$ I did not mean to discourage you in any way. I'm sorry that it came across this way. Yes, I have been too hazy, and my comment was not friendly as a result. Let me assure you that I just intended to fight link rot and make your post a little more robust towards that. Your contributions are always very much appreciated, especially when you back them up with references. So thank you and I'm sorry for the inconvenience. $\endgroup$ – Martin - マーチン Jan 17 '17 at 6:31
